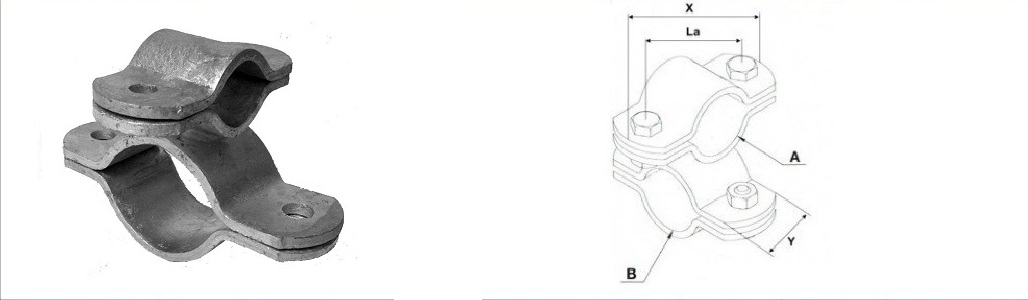

Querschelle
Standard Lieferumfang 4 Befestigungsschrauben |
||||||
![]() |
||||||
Bestell-Nr. | Nennweite A x B | Schraubenmaße | X mm | Y mm | Lochabstand | |
R 3084A | 1" x 1" | M10 x 25 | 92 | 30 | 65 | |
R 3084B | 1 1/4" x 1" | M10 x 25 | 92 | 30 | 65 | |
R 3084 | 1 1/2" x 1" | M10 x 25 | 115 | 45 | 80 | |
R 3085 | 1 1/4" x 1 1/4" | M10 x 25 | 92 | 30 | 65 | |
R 3086 | 1 1/2" x 1 1/4" | M10 x 30 | 115 | 45 | 80 | |
R 3087 | 1 1/2" x 1 1/2" | M10 x
30 M10 x 40 |
120 | 45 | 90 | |
R 3088 | 2" x 2" | M10 x 35 | 147 | 47 | 110 | |
R 3089 | 2" x 2 1/2" | M10 x 30 | 150 | 47 | 110 | |
R 3089A | 2" x 1 1/4" |
M10
x 25 M10 x 35 |
160 | 47 | 112 | |
R 3089B | 2" x 1" | M10 x 25 | 135 | 45 | 110 | |
R 3089C | 2 1/2" x 1 1/4" | M10 x 30 | 147 | 45 | 100 | |
R 3089D | 2 1/2" x 1" | M10 x 30 | 147 | 45 | 110 | |
R 3089E | 2 1/2" x 1 1/2" | M10 x 30 | 145 | 45 | 110 | |
R 3089F | 2 1/2" x 2 1/2" | M10 x 30 | 155 | 45 | 120 | |
Bestellung und Preisanfrage mit Mengenbedarf hier:+49 (0) 89 65 20 17
|
